弗洛伊德Floyd算法：

也称插点法，该算法用来求解每一对顶点之间的最短路径

假设从顶点1到2，顶点3为过度中间顶点则：
如果某个顶点位于从起点到终点的最短路径上：
1->2=（1->3）+（3->2）
如果某个顶点不在从起点到终点的最短路径上：
1->2<（1->3）+（3->2）

总结：从i号顶点到j号顶点只经过前k号点的最短路径

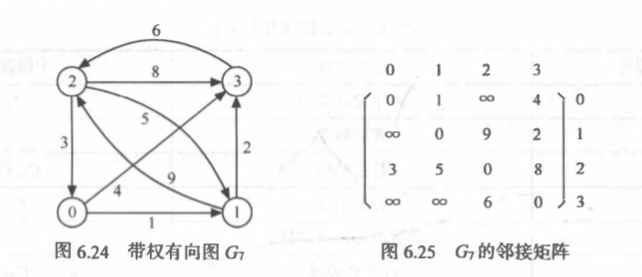

以该图为例：

辅助数组的变化过程：

代码如下：

#include<stdio.h>

#define MaxInt 999			//定义无穷大
#define MVNum 100
typedef char VerTexType;    //顶点类型
typedef int ArcType;		//边权值类型

//邻接矩阵存储结构
typedef struct
{

	VerTexType vexs[MVNum];				//顶点表
	ArcType arcs[MVNum][MVNum];			//邻接矩阵
	int vexnum, arcnum;					//图的当前点数和边数
}AMGraph;

void printGraph(AMGraph G);
int LocateVex(AMGraph G, char v);

//创建有向网
void CreateUDN(AMGraph &G)
{

	G.vexnum = 4;						//输入总顶点数和边数
	G.arcnum = 8;
	G.vexs[0] = 'v0';					//输入顶点信息
	G.vexs[1] = 'v1';
	G.vexs[2] = 'v2';
	G.vexs[3] = 'v3';

	for (int i = 0; i < G.vexnum; i++)			//初始化邻接矩阵为极大值
	{

		for (int j = 0; j < G.vexnum; j++)
		{

			G.arcs[i][j] = MaxInt;
		}
	}

	//输入权值
	int i, j;
	i = LocateVex(G, 'v0');
	j = LocateVex(G, 'v1');
	G.arcs[i][j] = 1;
	i = LocateVex(G, 'v0');
	j = LocateVex(G, 'v3');
	G.arcs[i][j] = 4;
	i = LocateVex(G, 'v1');
	j = LocateVex(G, 'v3');
	G.arcs[i][j] = 2;
	i = LocateVex(G, 'v1');
	j = LocateVex(G, 'v2');
	G.arcs[i][j] = 9;
	i = LocateVex(G, 'v2');
	j = LocateVex(G, 'v0');
	G.arcs[i][j] = 3;
	i = LocateVex(G, 'v2');
	j = LocateVex(G, 'v1');
	G.arcs[i][j] = 5;
	i = LocateVex(G, 'v2');
	j = LocateVex(G, 'v3');
	G.arcs[i][j] = 8;
	i = LocateVex(G, 'v3');
	j = LocateVex(G, 'v2');
	G.arcs[i][j] = 6;

	//自己到自己初始化为0
	i = LocateVex(G, 'v0');
	j = LocateVex(G, 'v0');
	G.arcs[i][j] = 0;
	i = LocateVex(G, 'v1');
	j = LocateVex(G, 'v1');
	G.arcs[i][j] = 0;
	i = LocateVex(G, 'v2');
	j = LocateVex(G, 'v2');
	G.arcs[i][j] = 0;
	i = LocateVex(G, 'v3');
	j = LocateVex(G, 'v3');
	G.arcs[i][j] = 0;


	printGraph(G);
}

//返回顶点在数组中的下标
int LocateVex(AMGraph G, char v)
{

	for (int i = 0; i < G.vexnum; i++)
	{

		if (G.vexs[i] == v)
		{

			return i;
		}
	}
}

//打印输出邻接矩阵
void printGraph(AMGraph G)
{

	for (int i = 0; i < G.vexnum; i++)
	{

		printf("v%d :", i + 1);

		for (int j = 0; j < G.vexnum; j++)
		{

			printf("%5d ", G.arcs[i][j]);
		}
		printf("\n");
	}
}

//邻接矩阵深度优先遍历
bool visited[MVNum];
void DFS_AM(AMGraph G, int v)
{

	printf("v%c->", G.vexs[v]);
	visited[v] = true;
	for (int w = 0; w < G.vexnum; w++)
	{

		if ((G.arcs[v][w]) != 0 && (!visited[w]))
		{

			DFS_AM(G, w);
		}
	}
}

//最短路径弗洛伊德算法
int D[MVNum][MVNum];			//存放v0到vi的最短路径长度值
int Path[MVNum][MVNum];			//存放vi的直接前驱顶点序号
void ShortestPath_Floyd(AMGraph G)
{

	//初始化
	for (int i = 0; i<G.vexnum; i++)
	{

		for (int j = 0; j<G.vexnum; j++)
			{

				D[i][j] = G.arcs[i][j];
				if (D[i][j] < MaxInt)		//i和j之间有弧
				{

					Path[i][j] = i;
				}
				else
				{

					Path[i][j] =-1;
				}
			}
	}

	//算法开始
	for (int k = 0; k < G.vexnum; k++)			//过度顶点
	{

		for (int i = 0; i < G.vexnum; i++)		//起点
		{

			for (int j = 0; j < G.vexnum; j++)	//终点
			{

				if (D[i][k] + D[k][j] < D[i][j])		//如小于更新D[i][j]
				{

					D[i][j] = D[i][k] + D[k][j];
					Path[i][j] = Path[k][j];
				}
			}
		}
	}

}

//打印输出辅助数组D[i][j]和Path[i][j]
void printArray(AMGraph G)
{

	printf("\nD数组：\n");
	for (int i = 0; i < G.vexnum; i++)
	{

		printf("%d:", i);
		for (int j = 0; j < G.vexnum; j++)
		{

			printf("%5d", D[i][j]);
		}
		printf("\n");
	}

	printf("\nPath数组：\n");
	for (int i = 0; i < G.vexnum; i++)
	{

		printf("%d:", i);
		for (int j = 0; j < G.vexnum; j++)
		{

			printf("%5d", Path[i][j]);
		}
		printf("\n");
	}
}

int main()
{

	AMGraph G;
	CreateUDN(G);

	int v = 0;
	printf("深度优先遍历：：");
	DFS_AM(G, v);

	int v0 = 0;
	printf("\n====================================\n");
	ShortestPath_Floyd(G);
	printArray(G);	//输出辅助数组D和Path
}

运行结果：
